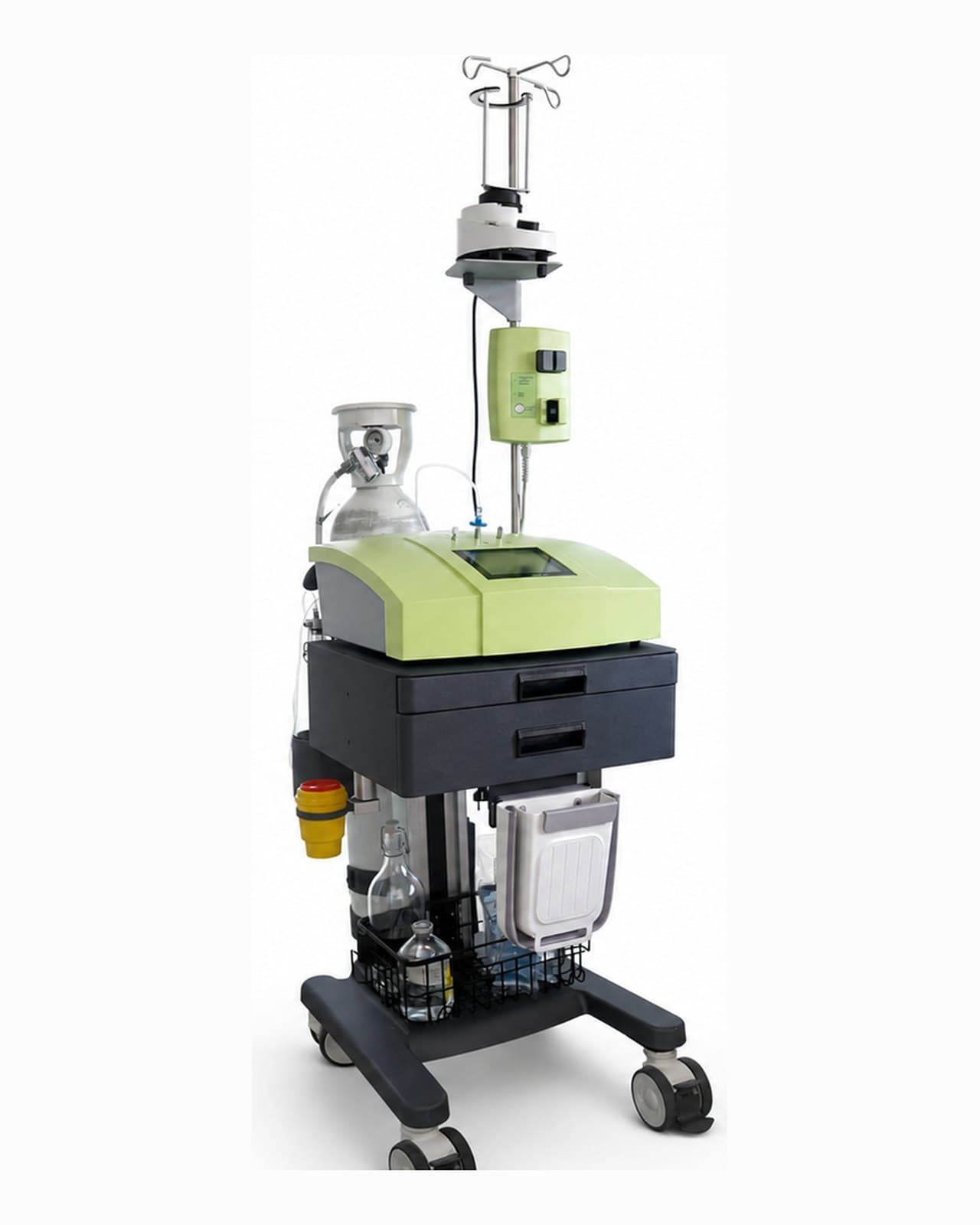

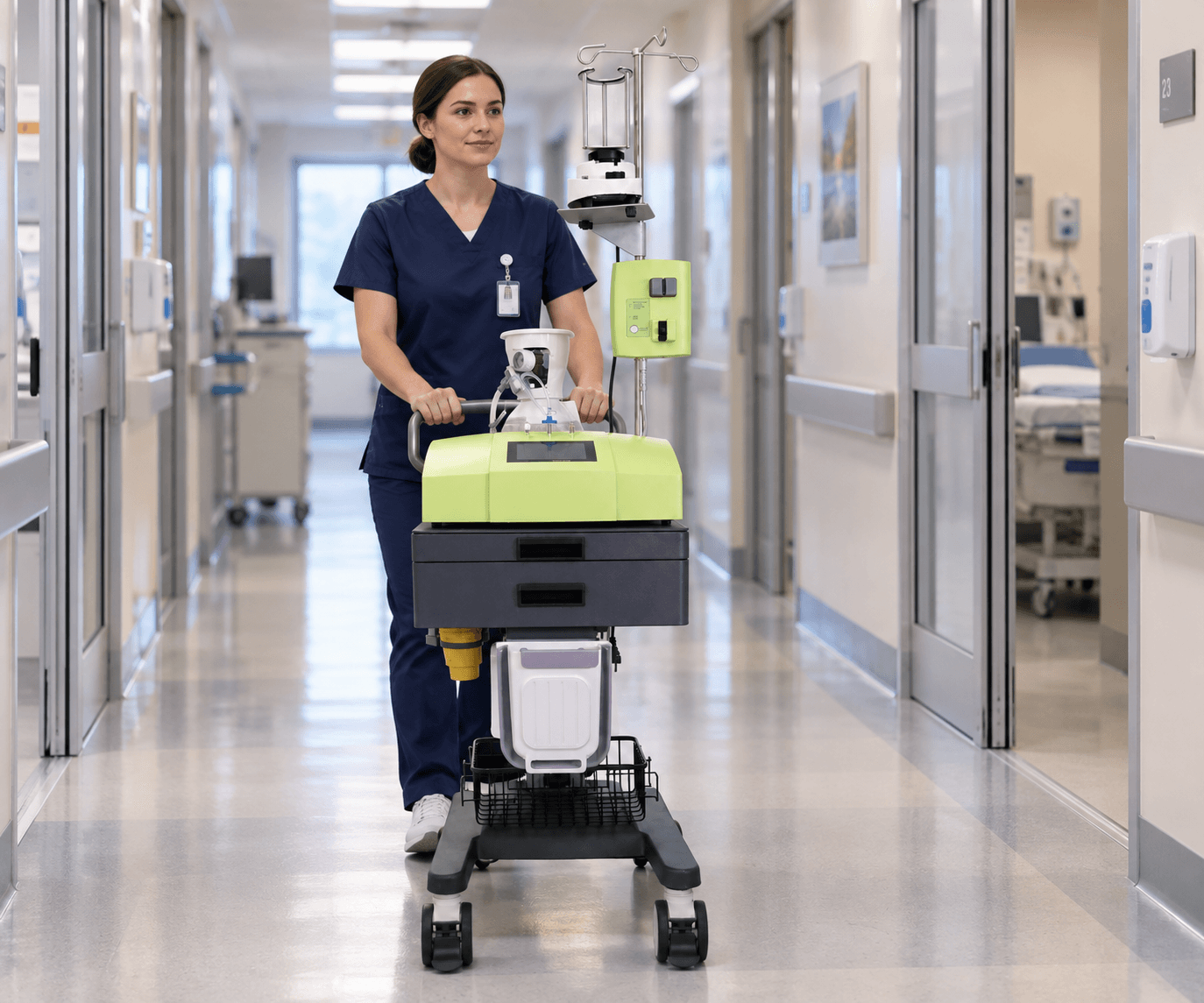

Example clinical configuration. IV bags and infusion consumables shown are not included.
Universal Medical Trolley
SKU IVT-300
Mobile clinical trolley combining a countertop drawer unit, a four-hook infusion pole and multiple accessory holders on a four-castor chassis, for organized transport of clinical supplies.
Lead time: 2–3 weeks
All products are quoted per order. Request a quote for pricing, lead time and freight to your region.
A closer look
Designed as a complete system
01 / 04

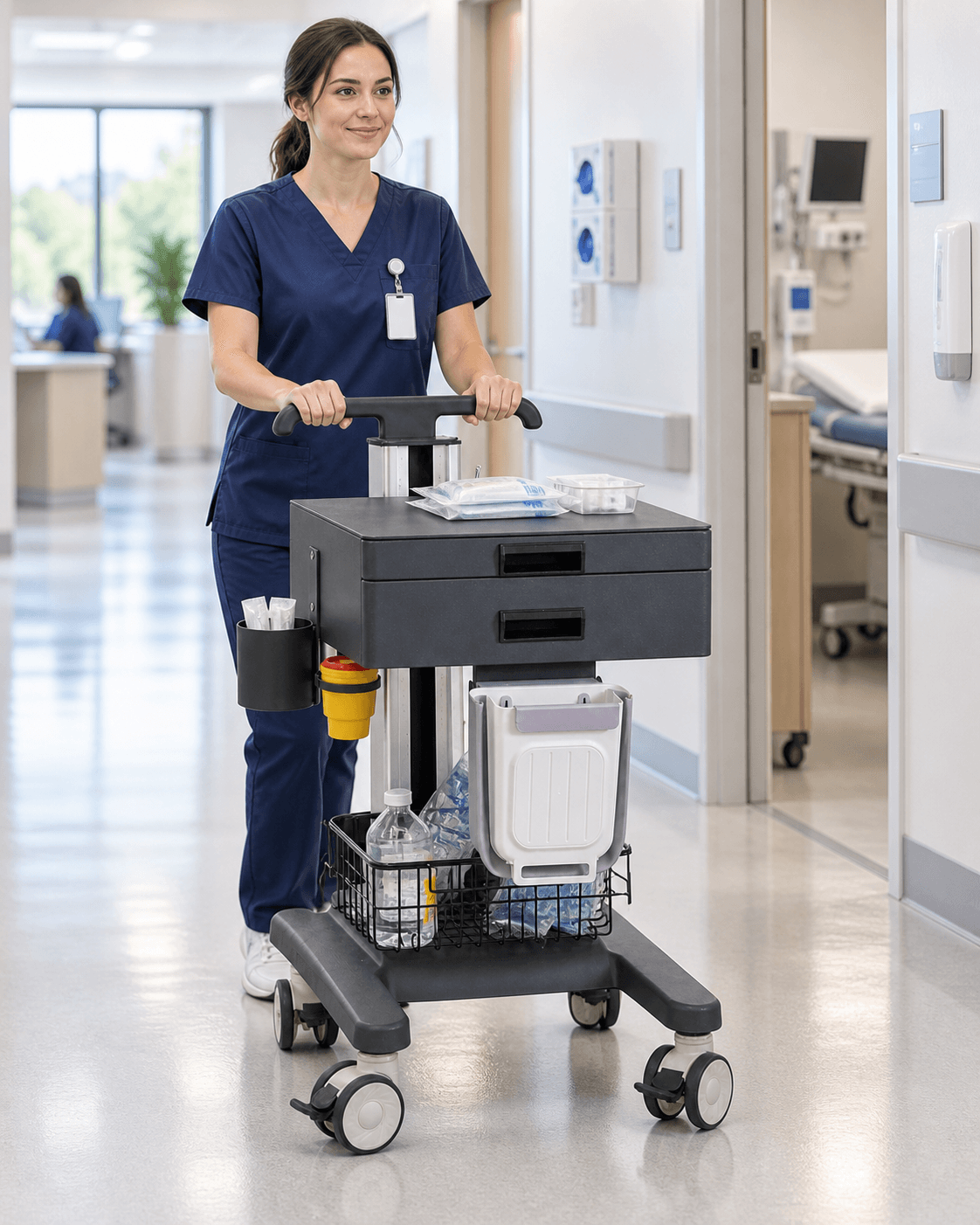

The T-slot aluminum column
Every accessory mounts to an aluminum column with a T-slot system. Reposition holders, baskets and brackets along the column without tools — the trolley adapts to your room, not the other way around.
02 / 04

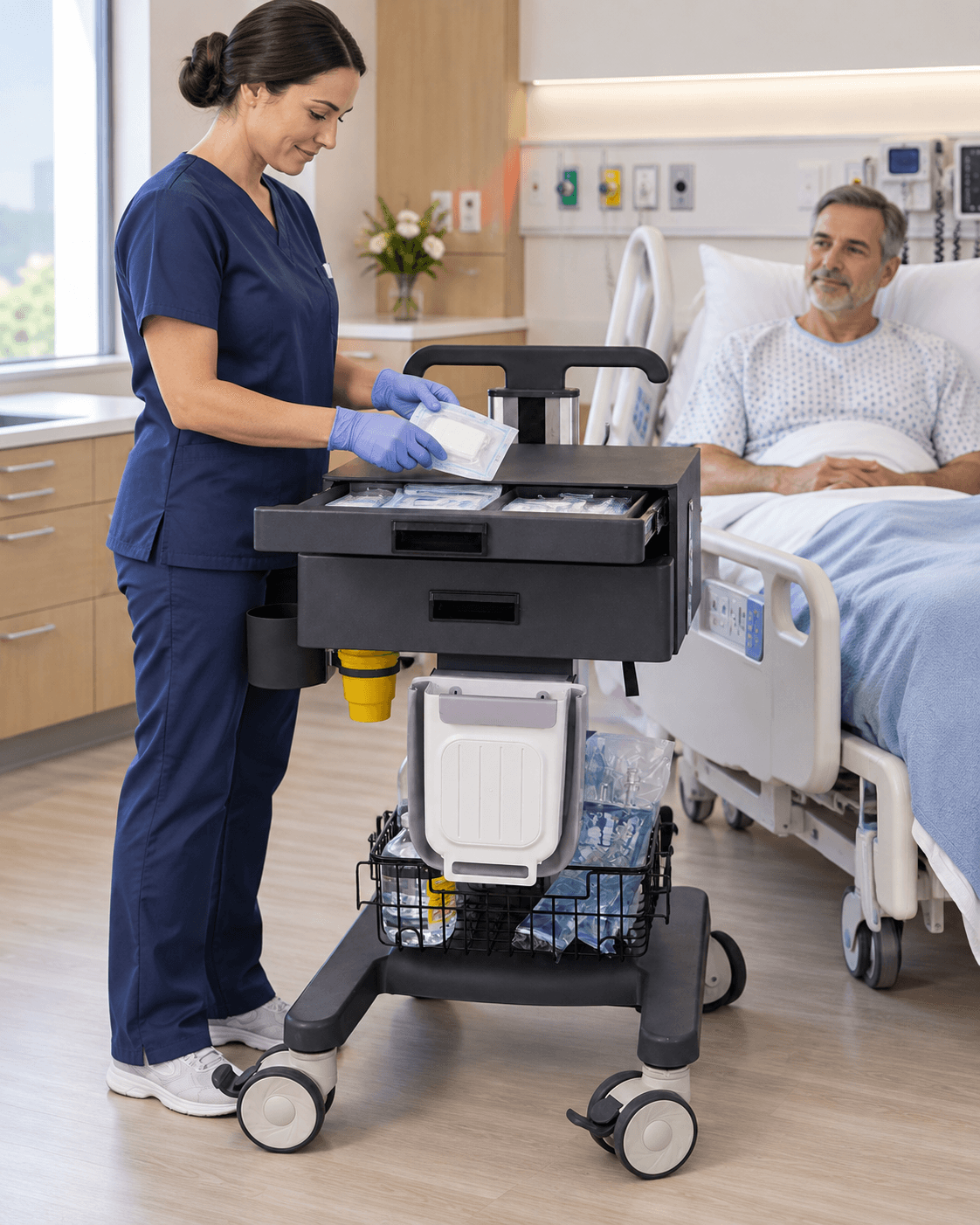

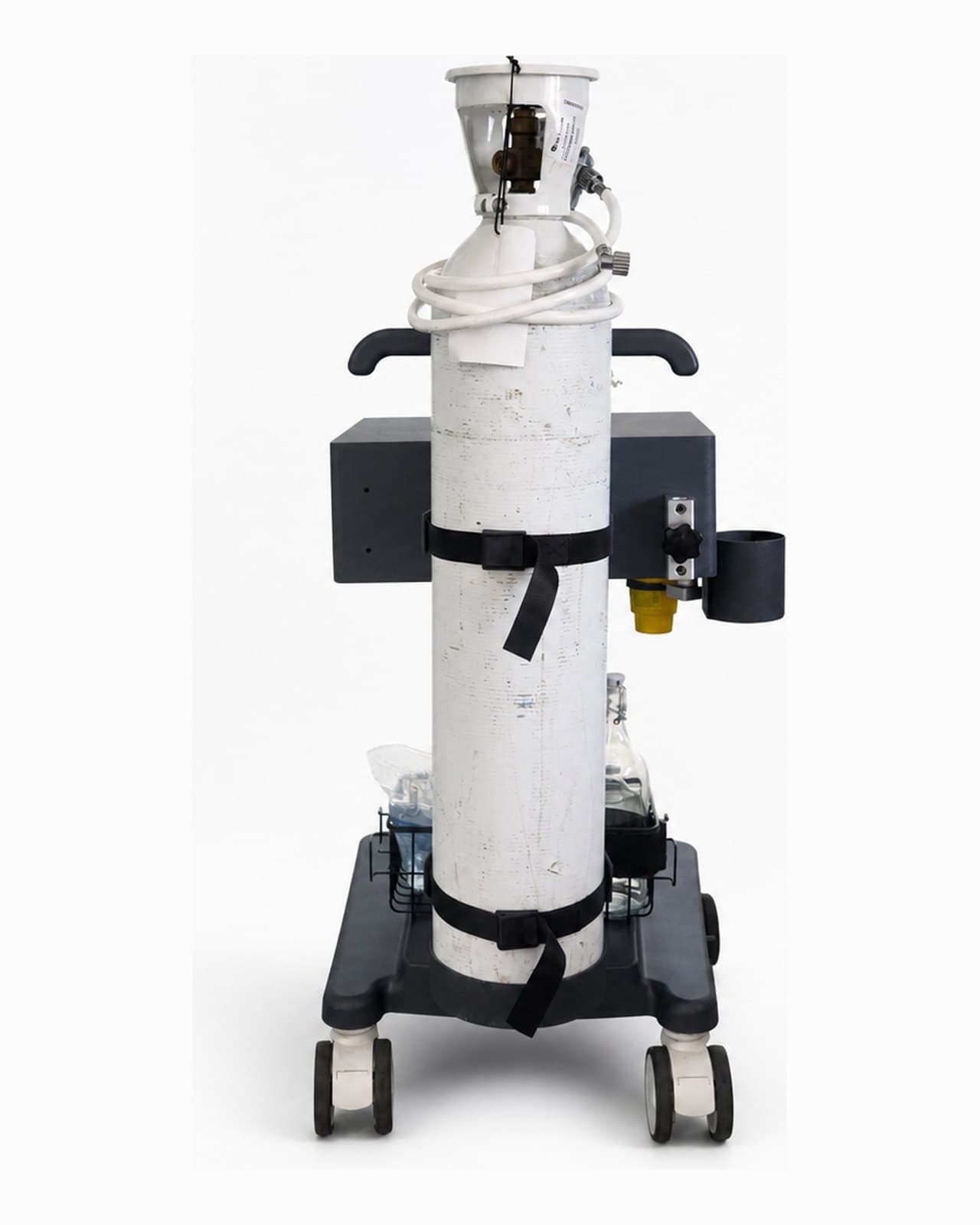

Secure cylinder mounting

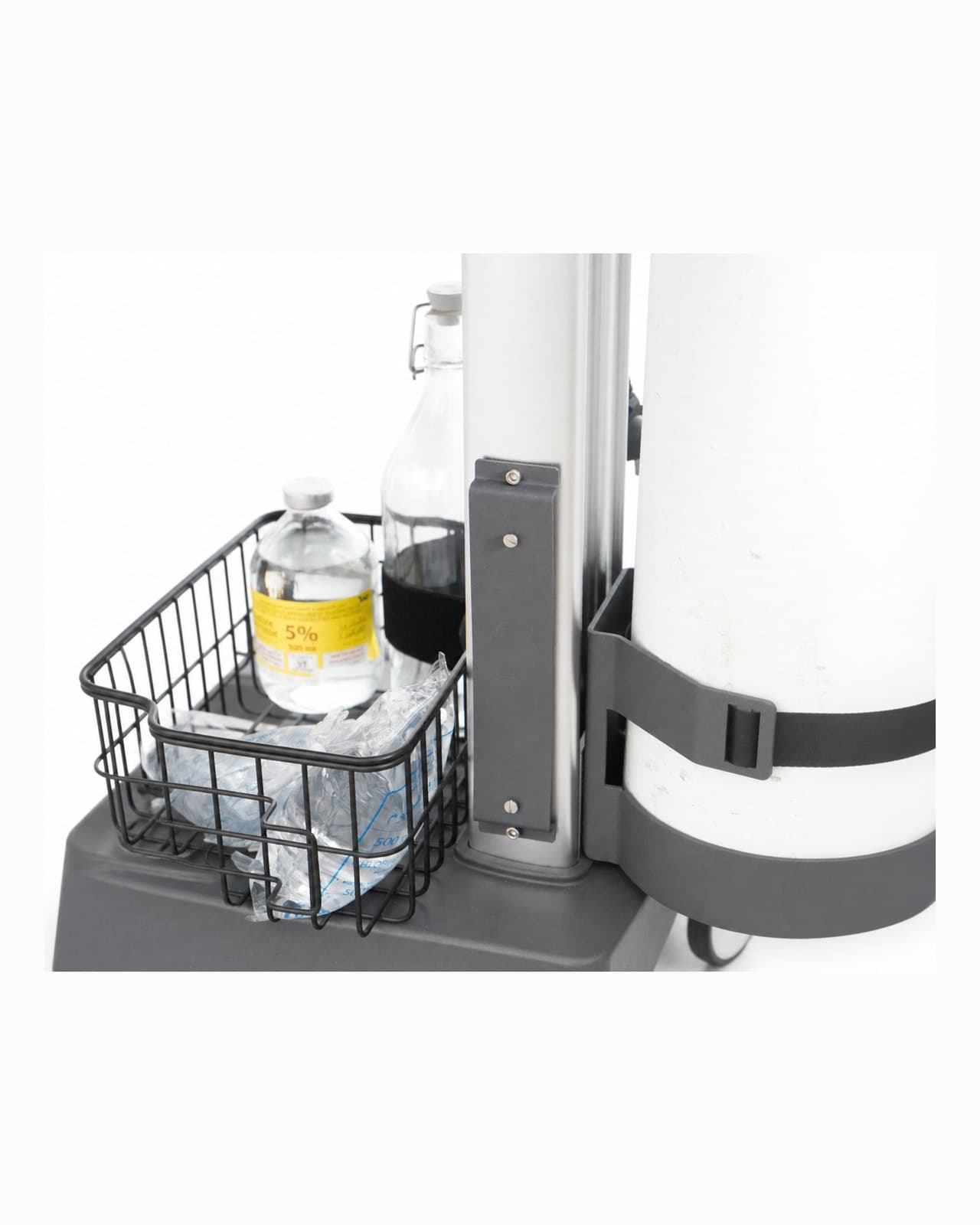

Upper and lower supports hold a cylinder firmly against the column — the upper support secures the neck with a retention strap while the lower support carries the weight, keeping the tank stable while the trolley moves.
03 / 04

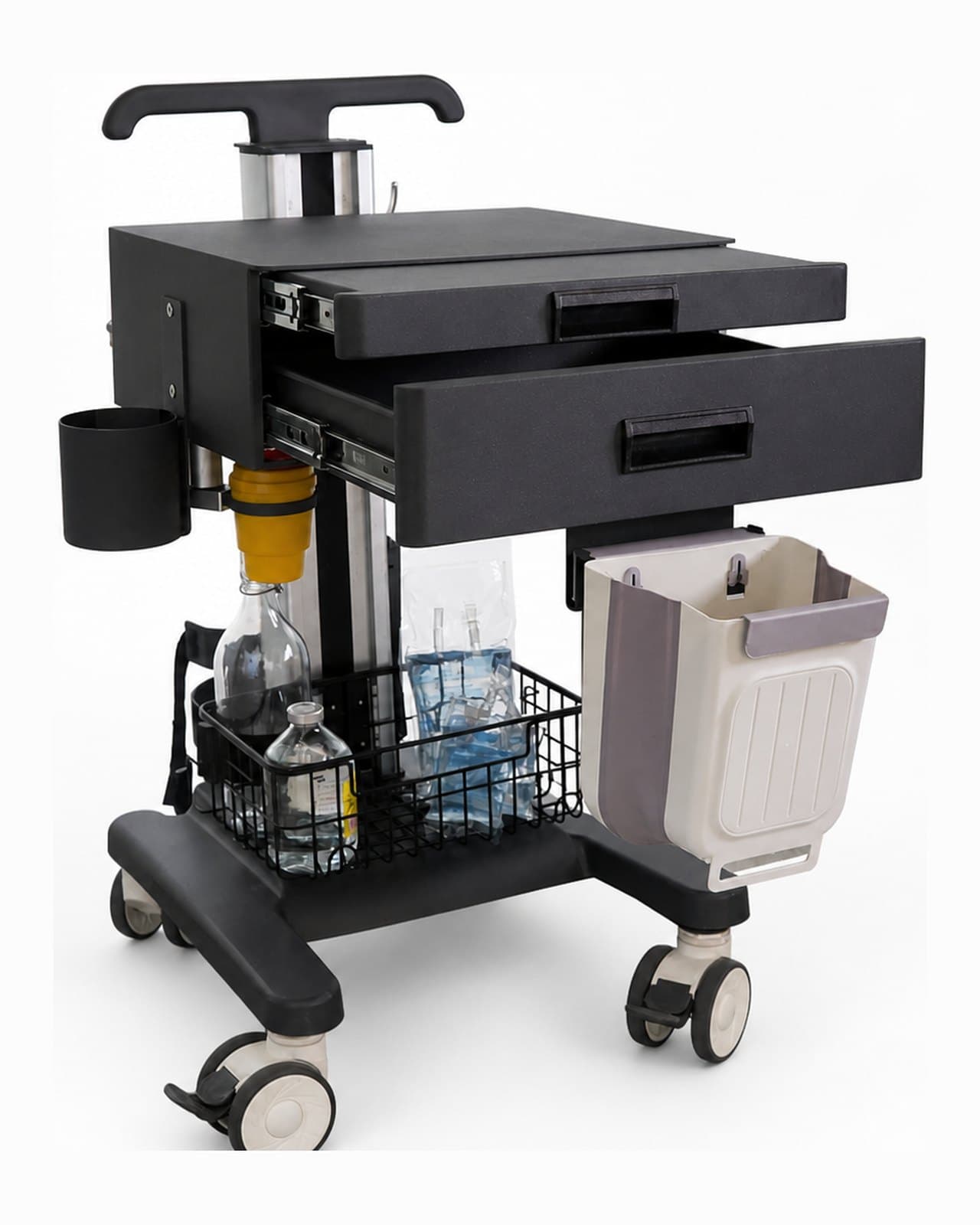

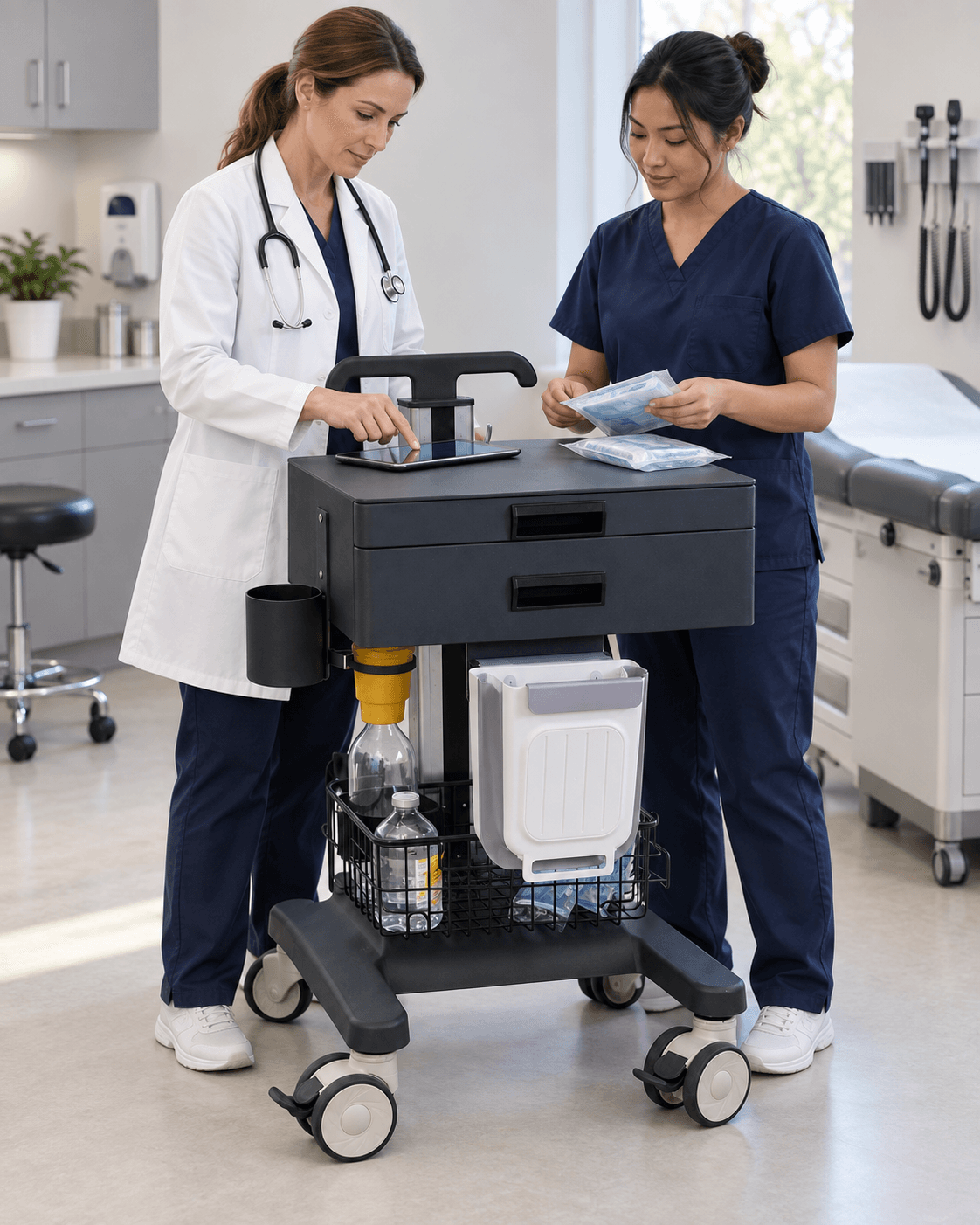

A worktop that stays organized

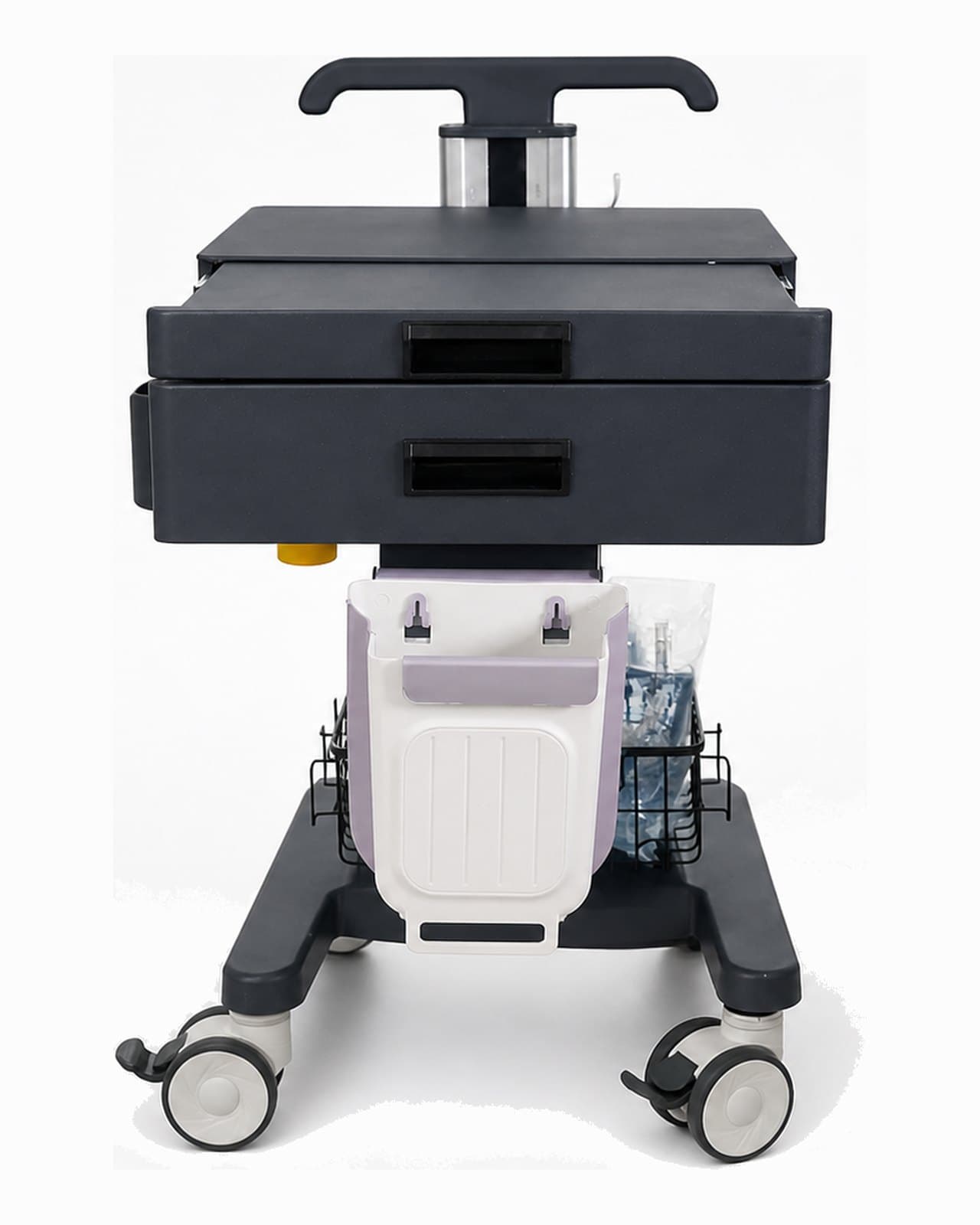

The countertop drawer unit gives you a flat working surface 902 mm from the floor, with an inner drawer on locking rails underneath — instruments and consumables stay in place, even in motion.
04 / 04

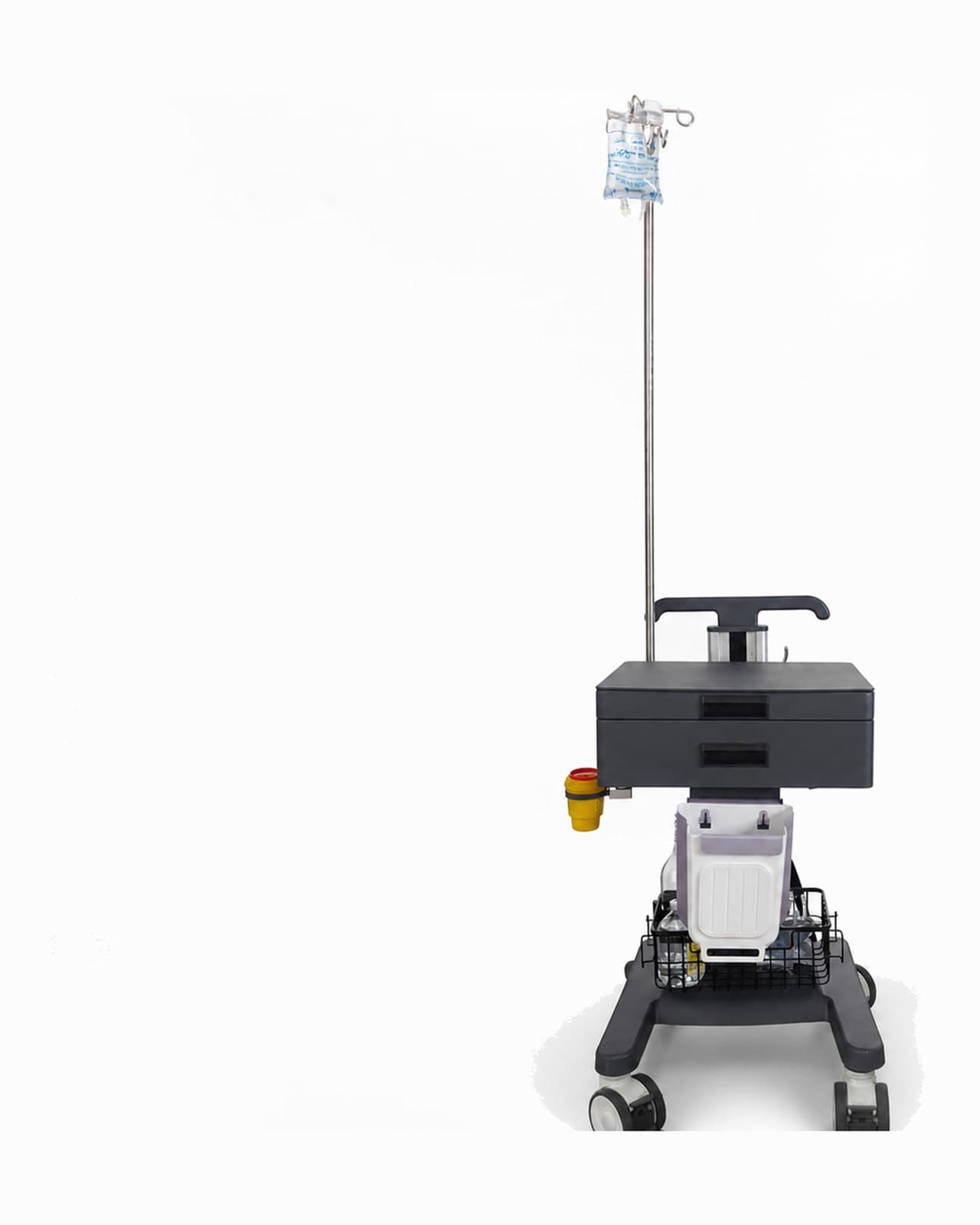

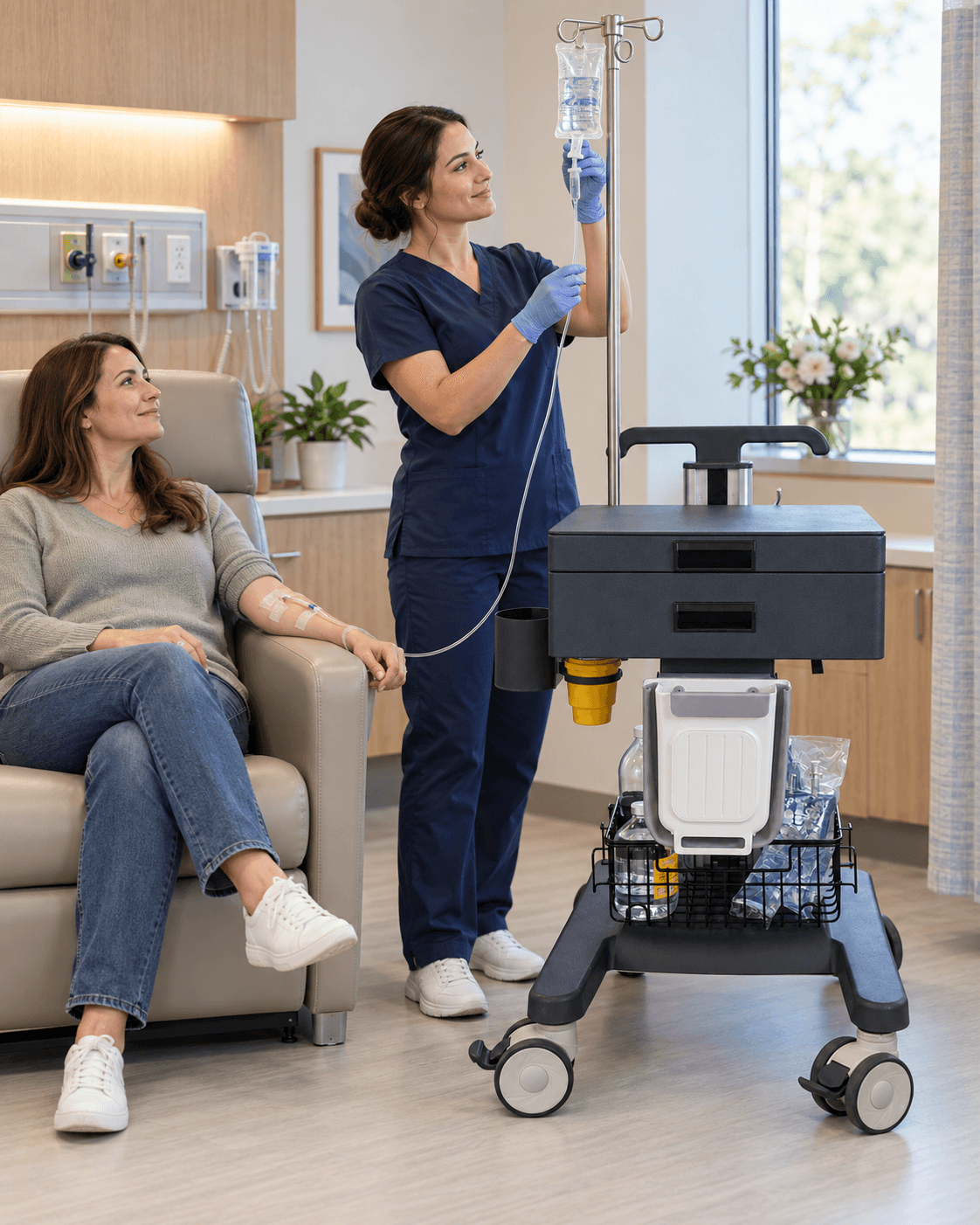

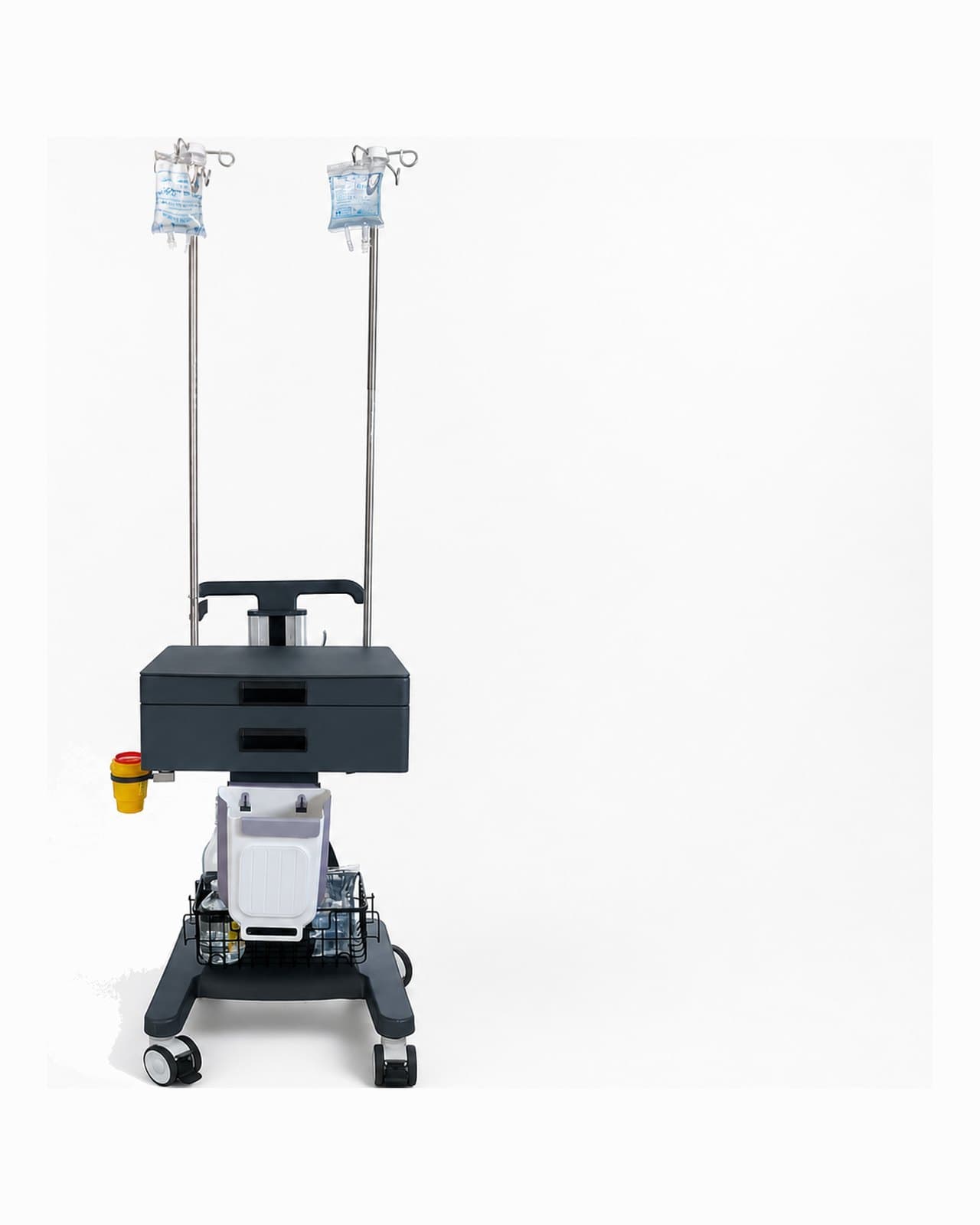

IV pole, always within reach

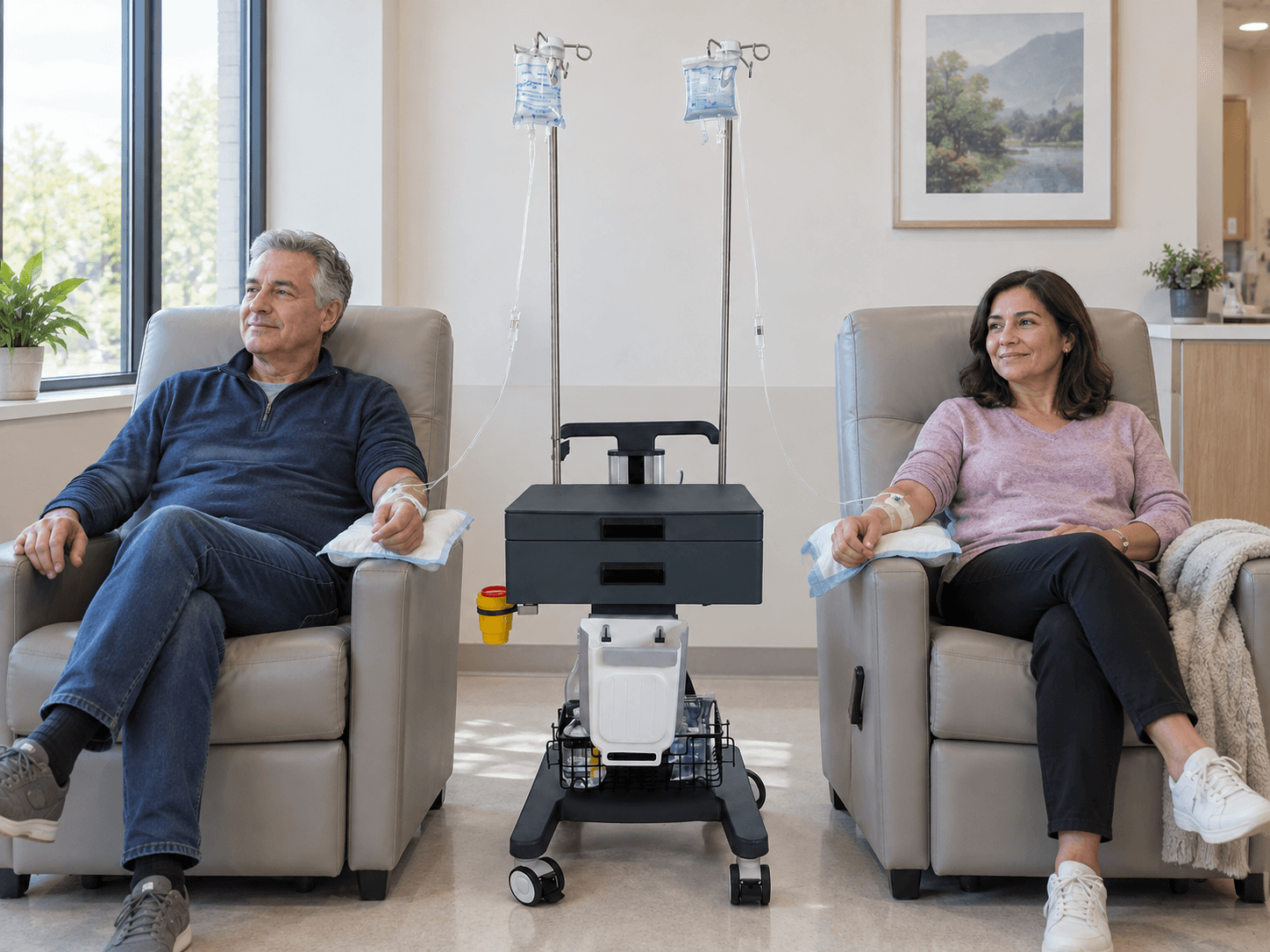

A stainless four-hook infusion pole with a hand-tightening lock rises from the column — adjust the height in seconds, no tools required.
Description

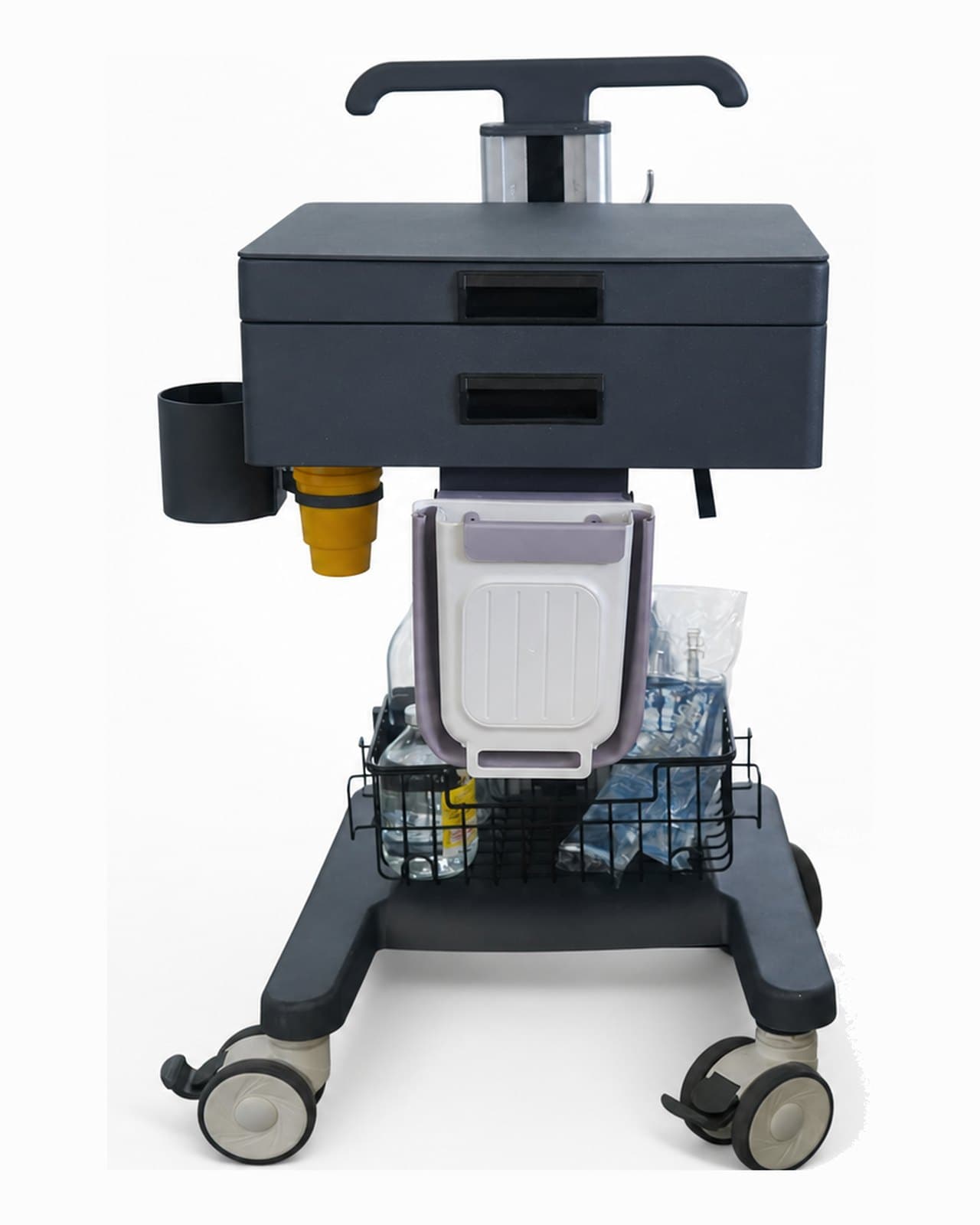

The IVT-300 is a mobile clinical trolley that combines a drawer and countertop unit, an infusion pole and multiple accessory holders on a compact chassis. The configuration supports organized transport and positioning of clinical supplies and compatible accessories in professional healthcare environments.
A four-castor chassis carries an aluminum column with a T-slot mounting system, so every accessory — holders, baskets, brackets — can be repositioned along the column without tools. The countertop drawer unit provides a stable working surface 902 mm from the floor, with an inner drawer on locking rails underneath.

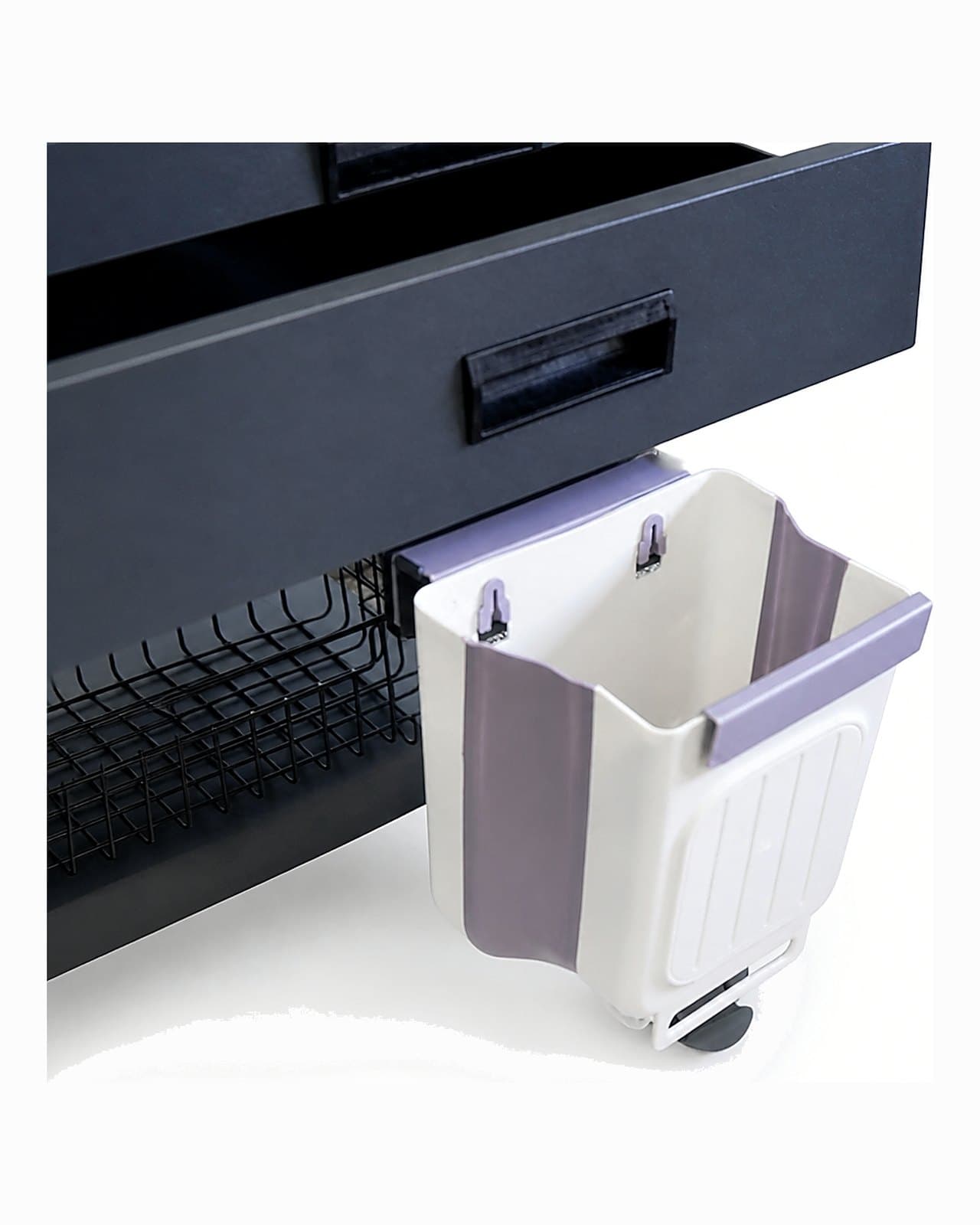

Around it, the trolley keeps a complete treatment-room setup within reach: storage basket, glass bottle holder, sharps-container holder, trash-can hanger, cable-winding bracket, and upper and lower cylinder supports with retention straps. A stainless four-hook infusion pole with a hand-tightening lock completes the platform.
The IVT-300 is a Class I, non-sterile, non-powered medical device without a measuring function, manufactured under a quality management system certified to ISO 13485:2016 (certificate no. 26EMRI61). It ships flat-packed in a single carton with a complete fastener kit, four hex wrenches (3, 4, 5 and 6 mm) and step-by-step assembly instructions.
- Countertop and drawer unit — integrated upper storage and working surface
- Push handle assembly for controlled repositioning
- Four-hook infusion pole with hand-tightening height lock
- Aluminum column with T-slot system for tool-free repositioning of accessories
- Accessory storage — wire basket and glass-bottle holder
- Waste and sharps — dedicated hanger and sharps-container bracket
- Upper and lower cylinder supports with retention straps
- Four-castor mobile chassis
- Class I medical device — non-sterile, non-powered, no measuring function
- Flat-packed with complete hex-key tool kit and step-by-step assembly guide
Specifications
| Specification | Value |
|---|---|
| Product name | Medical Trolley |
| Model / catalogue no. | IVT-300 |
| Overall height shown | 1329 mm |
| Upper body width | 450 mm |
| Upper body height | 165 mm |
| Upper assembly depth | 376 mm |
| Worksurface height shown | 902 mm |
| Mobility | Four-castor chassis |
| IV support | Four-hook infusion pole |
| Power requirement | None — non-powered device |
| Device class | Class I — non-sterile, without a measuring function |
| Classification rule | Rule 1 — non-invasive medical device |
| Quality management system | ISO 13485:2016 (certificate no. 26EMRI61) |
| Assembly | Tool-assisted (hex keys included) |
In the box
- Countertop / drawer assembly
- Push handle assembly
- Upper and lower cylinder supports with retention straps
- Storage basket
- Trash-can hanger
- Sharps container holder
- Four-hook IV pole assembly
- Glass bottle holder
- Column
- Chassis
- Fastener kit
- 4 hex wrenches (3 / 4 / 5 / 6 mm)
- Assembly instructions
